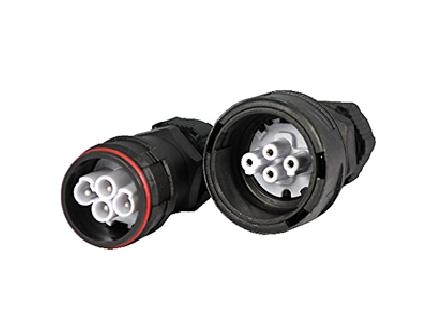

AC-858B IP 68 Connector


Operating Parameters
Current Rating : 15A
Voltage Rating : 220V AC
Contact resistance : < 10m
Ω
Dielectric resistance : 500mΩ at DC500V
Standing voltage : 3KV Under normal temperature

Material
Cable Type : PVC, Rubber, Silicon
Shell material : Flame-resistant/anti-UV nylon (PA66)
Compressed Socket : Brass
Crown Spring : beryllium copper
pin : brass plated 4U
Seal-O-Ring : Silicon

Property
Waterproof Rating : IP68
Cable OD Rating : OD
14.0mm
Times of plug/pull : Above 1500 times
Operating temperature : -45
C ~ +105C
Humidity : 90% + 40
C
