Products > LED Component > Full Color Power LED

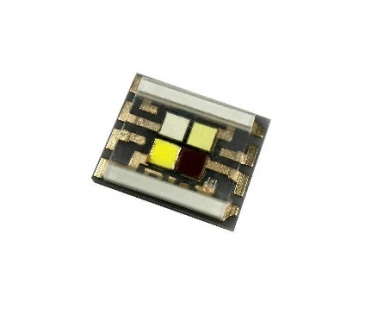

15W RGBW 4 Color in 1LED

．Compact light source
．R, G, B, W four color in one package
．Maximum drive current: 1000mA per LED die
．Lead free reflow soldering
．Superior ESD protection
．RoHS compliant

Item No.: AT4757MC-15LERGBW-8A、AT4758MCD-15LERGBW-8A

LEDs

Radiation Pattern	Color		Dominant Wavelength λD, or Color Temperature CCT						Total Included Angle (degrees) θ0.90V		Viewing Angle (degrees) 2 θ1/2
			Min.		Typ.		Max.
Lambertian	Red		620 nm		623 nm		630 nm		160		120
	Green		520 nm		524 nm		528 nm		160		120
	Blue		453 nm		455 nm		457 nm		160		120
	White		5750 K		6500 K		7250 K		160		120
Color		Forward Voltage VF (V)								Thermal Resistance Junction to Slug (°C/ W)
		@700 mA						Refer @1000mA
		Min.		Typ.		Max.		Typ.
Red		2.1		2.4		2.9		2.60		1.8
Green		2.9		3.5		4.2		3.75
Blue		2.9		3.3		4.0		3.45
White		2.9		3.3		4.0		3.45

Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 120°C

Please contact us for more detail.
