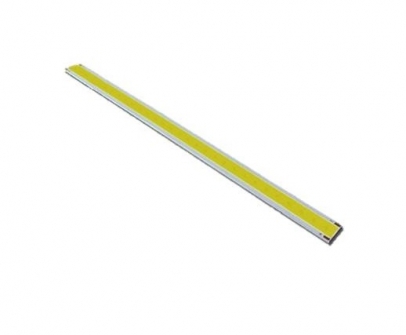

Item No.: AE24015L-10LEW
LEDs
|
Parameter
|
Symbol
|
Rating
|
Unit
|
|
DC Forward Current dt
|
IF
|
900
|
mA
|
|
Peak Forward Current
|
IFP
|
1080
|
mA
|
|
Reverse Voltage
|
VR
|
14
|
V
|
|
Power Dissipation
|
Pd
|
10
|
W
|
|
Electrostatic discharge
|
ESD
|
±4500
|
V
|
|
Soldering Temperature
|
Tsol
|
Max.270℃ for 3 seconds Max.
|
|
Parameter
|
Symbol
|
Min.
|
Typ.
|
Max.
|
Unit
|
Condition
|
|
Luminous Intensity
|
Φv
|
80
|
-
|
100
|
Im/W
|
IF=900mA
|
|
Forward Voltage
|
VF
|
12
|
-
|
14
|
V
|
IF=900mA
|
|
Chromaticity
|
Tc
|
3000
|
-
|
3200
|
K
|
IF=900mA
|
|
6000
|
-
|
6500
|
|
50% Power Angle
|
2θ1/2
|
-
|
140
|
-
|
deg
|
IF=900mA
|
|
Reverse Current
|
IR
|
-
|
-
|
50
|
μA
|
VR =14V
|
| |
|
|
|
|
|
|
|
|
|
Enviroment
Operation Temperature: -40°C ~ 80°C
Storage Temperature: -40°C ~ 100°C
Please contact us for more detail.
