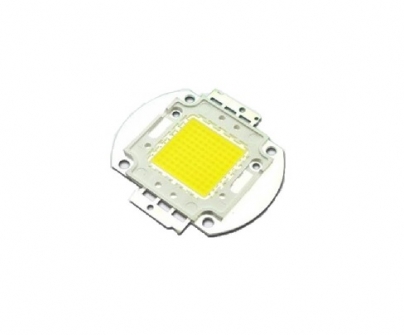

Item No.: AE4055S-50LEA / AE4055S-50LER
LEDs
|
Parameter
|
Symbol
|
Rating
|
Unit
|
|
DC Forward Current dt
|
IF
|
1.5
|
A
|
|
Peak Forward Current
|
IFP
|
1.8
|
A
|
|
Reverse Voltage
|
VR
|
24
|
V
|
|
Power Dissipation
|
Pd
|
50
|
W
|
|
Electrostatic discharge
|
ESD
|
±4500
|
V
|
|
Junction Temperature
|
T j
|
115
|
℃
|
|
Parameter
|
Symbol
|
Min.
|
Typ.
|
Max.
|
Unit
|
Condition
|
|
Luminous Intensity
|
Φv
|
35
|
-
|
45
|
Im/W
|
IF=1.5A
|
|
Forward Voltage
|
VF
|
20
|
-
|
24
|
V
|
IF=1.5A
|
|
Chromaticity (White)
|
λd
|
588
|
-
|
592
|
nm
|
IF=1.5A
|
|
Chromaticity (Red)
|
λd
|
620
|
-
|
630
|
nm
|
IF=1.5A
|
|
50% Power Angle
|
2θ1/2
|
-
|
140
|
-
|
deg
|
IF=1.5A
|
|
Reverse Current
|
IR
|
-
|
-
|
50
|
μA
|
VR =24V
|
Enviroment
Operation Temperature: -40°C ~ 80°C
Storage Temperature: -40°C ~ 100°C
Please contact us for more detail.
