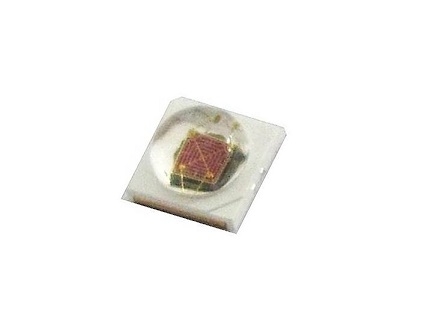

Item No.: AP3535FL-3LER
LEDs
Parameter
Red
DC Forward Current (mA)
700
Peak Pulsed Forward Current (mA)
1000 (less than 1/10 duty cycle@1KHz)
Average Forward Current (mA)
Color
Forward Voltage VF (V)
Thermal Resistance Junction to Slug (°C/ W)
@ 350mA
Refer @700mA
Min.
Typ.
Max.
1.75
2.2
3.0
2.7
8
Dominant Wavelength λD, Peak Wavelength【1】λP,
Total
Included Angle (degrees) θ0.90V
Viewing Angle (degrees) 2 θ1/2
613.5 nm
623 nm
631 nm
160
130
Part Number
Luminous Flux ΦV (lm)
@350 mA
Refer@700 mA
Emitter
AP3535FL-3LER
40
60
112
Enviroment Operation Temperature: -40°C ~ 85°C Storage Temperature: -40°C ~ 90°C
