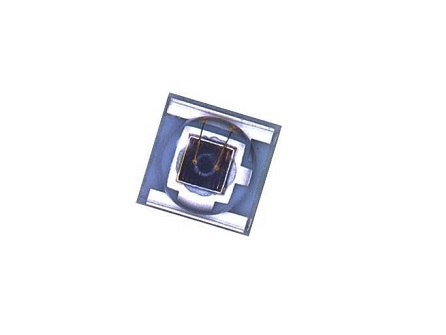

Item No.: AH3535LC-1LEIX
LEDs
|
Parameter
|
Symbol
|
Min.
|
Typ.
|
Max.
|
Unit
|
Condition
|
|
Forward Voltage
|
VF
|
1
|
-
|
4
|
V
|
IF＝700 mA
|
|
Dominant Wavelength
|
WLP
|
630
|
-
|
870
|
nm
|
|
Viewing Angle [1]
|
2θ1/2
|
120
|
125
|
130
|
deg
|
|
Luminous Flux
|
Φe
|
135
|
-
|
760
|
mW
|
|
Parameter
|
Symbol
|
Ratings
|
Unit
|
|
Power Dissipation
|
Pd
|
1-3
|
mW
|
|
DC Forward Current
|
IF
|
350
|
mA
|
|
Max DC Forward Current
|
IF(Max DC)
|
700
|
mA
|
|
Max Pulsed Forward Current[2]
|
IF(Max Pulsed)
|
1000
|
mA/℃
|
|
P/N
|
Color
|
Peak Wavelength (nm)
|
Viewing Angle (degrees) 2 θ1/2
|
|
Min.
|
Max.
|
|
AH3535LC-1LEI6
|
Infrared 660
|
640
|
680
|
125
|
|
AH3535LC-1LEI7
|
Infrared 740
|
700
|
800
|
125
|
|
AH3535LC-1LEI8
|
Infrared 850
|
800
|
900
|
125
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
Enviroment
Operation Temperature: -40°C ~ 80°C
Storage Temperature: -40°C ~ 100°C
Please contact us for more detail.
