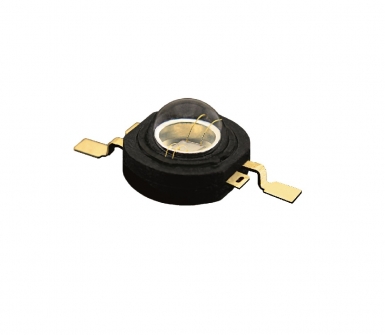

| 2W Dual Section Wavelength UV LED |
| | Features
．Dual UV Section Wavelength 370 mm and 400 mm
．Instant light (less than 100ns)
．Lead free reflow soldering
．RoHS compliant
．Cool beam, safe to the touch |
|
|
|
Item No.: AT80-2LED3740
LEDs
|
Radiation Pattern
|
Color
|
Part Number
Emitter
|
Radiometric Power (mW)
|
|
Minimum
|
Typical
|
|
Lambertian
|
370nm + 400nm
|
AT80-2LED3740
|
515
|
800
|
|
Color
|
Forward Voltage VF (V)
|
Thermal Resistance Junction to Slug (°C/ W)
|
|
Min.
|
Typ.
|
Max.
|
|
370nm + 400nm
|
6.0
|
7.0
|
7.6
|
8
|
|
Color
|
Peak Wavelength λP,
|
Total
Included Angle (degrees) θ0.90V
|
Viewing Angle (degrees) 2 θ1/2
|
|
Min.
|
Typ.
|
Max.
|
|
370nm + 400nm
|
-
|
180
|
130
|
|
Parameter
|
370nm + 400nm
|
|
DC Forward Current (mA)
|
350
|
|
Peak Pulsed Forward Current (mA)
|
500 (less than 1/10 duty cycle@1KHz)
|
|
ESD Sensitivity
(HBM per MIL-STD-883E Method 3015.7)
|
±500V (Class III)
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Enviroment
Operation Temperature: -40°C ~ 90°C
Storage Temperature: -40°C ~ 120°C
Please contact us for more detail.
E-mail: service@all-brite-intl.com
|
|
|
|
