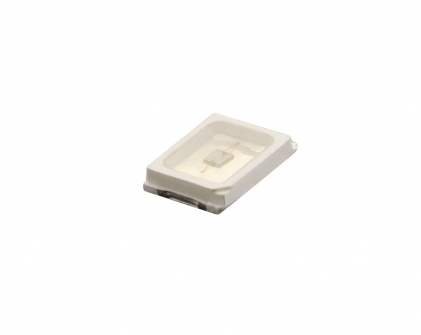

Item No.: AB2835N-05LEUV
LEDs
|
Parameter
|
Symbol
|
Rating
|
Unit
|
|
Power Dissipation
|
Pd
|
720
|
mW
|
|
Forward Current
|
IF
|
200
|
mA
|
|
Peak Forward Current*1
|
IFP
|
300
|
mA
|
|
Reverse Voltage
|
VR
|
5
|
V
|
|
LED Junction Temperature*2
|
Tj
|
125
|
℃
|
|
Soldering Temp.
|
Tsol
|
Reflow Soldering：260℃ for 10 sec
Hand Soldering：350℃ for 3 sec
|
|
Parameter
|
Symbol
|
Min.
|
Typ.
|
Max.
|
Unit
|
Condition
|
|
Forward Voltage
|
VF
|
3.0
|
-
|
3.6
|
V
|
IF=150mA
|
|
Peak Wavelength
|
WLP
|
390
|
-
|
410
|
nm
|
|
Viewing Angle
|
2θ 1/2
|
-
|
120
|
-
|
deg
|
|
Luminous Intensity
|
Ra
|
-
|
120
|
-
|
mW
|
|
Reverse Current
|
IR
|
|
|
10
|
μA
|
VR=5V
|
| |
|
|
|
|
|
|
|
|
|
Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 100°C
