Products > LED Component > UV LED / UVA LED

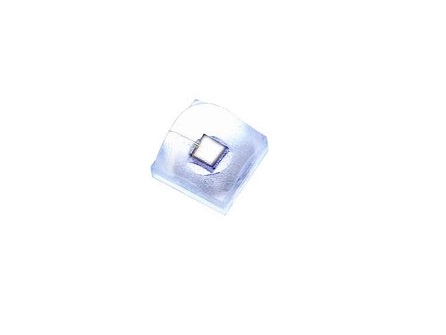

1616 0.2W UV Lambertian LED
 .100% foot print compatible with Cree XQ-E
.Best thermal material solution of the world
.Best Moisture Sensitivity: JEDEC Level 1
.RoHS compliant

Item No.: AT1616Q13-02LEV3637

LEDs

Color

Part Number

Radiometric Power (mW)



Emitter

Min.

Typ.



UV

AT1616Q13-02LEV3637

50

60



Color

Forward Voltage VF (V)

Thermal Resistance Junction to Slug (°C/ W)



Min.

Typ.

Max.



UV

3.2

3.6

4.0

80



Radiation
Pattern

Color


Dominant Wavelength
λD

Total Included Angle (degrees) θ0.90V

Viewing Angle (degrees) 2 θ1/2



Min.

Typ.

Max.



Lambertian

UV

365  nm

367 nm

370 nm

160

130



Parameter

UV

DC Forward Current (mA)

60

Peak Pulsed Forward Current (mA)

120 (less than 1/10 duty cycle@1KHz)

ESD Sensitivity (HBM per MIL-STD-883E Method 3015.7)

> 8KV

LED Junction Temperature (°C)

100 °C



Enviroment
Operation Temperature: -30°C ~85°C
Storage Temperature: -40°C ~ 100°C

 Please contact us for more detail.
