Products > LED Component > UV LED / UVA LED

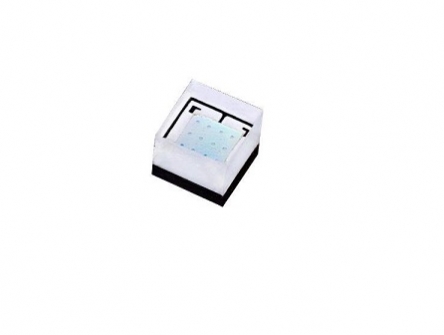

1616 3W Flat UV LED
 .100% foot print compatible with Cree XQ-E
.Best thermal material solution of the world
.Best Moisture Sensitivity: JEDEC Level 1
.RoHS compliant

Item No.: AT1616Q15-3WEV3940

LEDs

Color

Part Number

Luminous Flux ΦV(lm)



@350mA

Refer @700mA



Emitter

Min.

Typ.

Min.

Typ.



UV

AT1616Q15-3WEV3940
AT1616Q15-3WEV3941

400

510

740

940



Color

Forward Voltage VF (V)

Thermal Resistance Junction to Slug (°C/ W)



@ 350mA

Refer @700mA



Min.

Typ.

Max.

Typ.



UV

2.85

3.15

3.25

3.45

3.50



Radiation
Pattern

Color

Dominant Wavelength λD

Total

Included Angle (degrees) θ0.90V

Viewing Angle (degrees) 2 θ1/2



Min.

Typ.

Max.



Flat

UV

395 nm

400 nm

405 nm

195

150



390 nm

400 nm

410 nm



Parameter

UV

DC Forward Current (mA)

700

Peak Pulsed Forward Current (mA)

1000 (less than 1/10 duty cycle@1KHz)

ESD Sensitivity (HBM per MIL-STD-883E Method 3015.7)

±500V

LED Junction Temperature (°C)

125 °C



Enviroment
Operation Temperature: -40°C ~105°C
Storage Temperature: -40°C ~ 120°C
