Products > LED Component > High Power LED

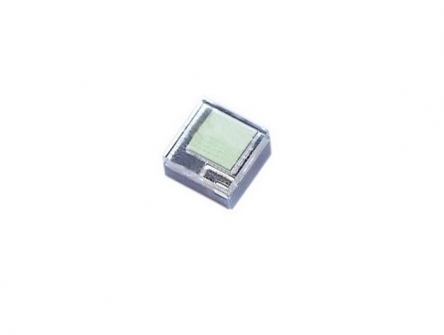

4W 1616 Flat Thin LED
 .100% foot print compatible with Cree XQ-E
.Best Moisture Sensitivity: JEDEC Level 1
.RoHS compliant
.Very wide Viewing Angle

Item No.: AT1616Q15T-4WEXX

LEDs

Color

Part Number

Luminous Flux ΦV(lm)

@350mA

Refer @700mA

Refer @1000mA

Emitter

Min.

Typ.

Min.

Typ.

Min.

Typ.

White

AT1616Q15T-4WEW

110

128

194

224

253

292

Red

AT1616Q15T-4WER

30

43

52

75

69

100

Green

AT1616Q15T-4WEG

80

94

117

137

137

161

Blue

AT1616Q15T-4WEB

18.1

30

30.5

48

38.5

63

PC Amber

AT1616Q15T-4WEPA

70

80

123

141

161

184

PC Yellow Green

AT1616Q15T-4WEPC

110

128

194

224

253

292



Enviroment
Operation Temperature: -40°C ~105°C
Storage Temperature: -40°C ~ 120°C

 Please contact us for more detail.
