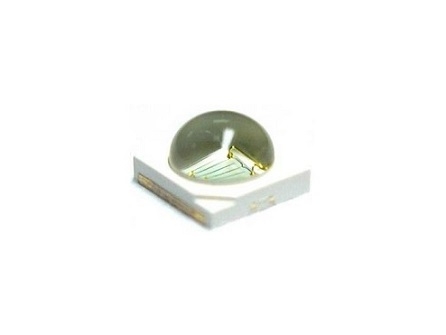

Item No.: AT3535F-5LEB
LEDs
|
Radiation Pattern
|
Color
|
Part Number
|
Luminous Flux ΦV(lm)
|
|
@350mA
|
Refer @1200mA
|
|
Emitter
|
Min.
|
Typ.
|
Min.
|
Typ.
|
|
Lambertian
|
Blue
|
AT3535F-5LEB
|
39.8
|
45.0
|
98.0
|
112.0
|
|
Radiation Pattern
|
Color
|
Dominant Wavelength λD
|
Total Included Angle (degrees) θ0.90V
|
Viewing Angle (degrees)
2 θ1/2
|
|
Min.
|
Typ.
|
Max.
|
|
Lambertian
|
Blue
|
475 nm
|
480 nm
|
485 nm
|
160
|
130
|
|
Parameter
|
Blue
|
|
DC Forward Current (mA)
|
1200
|
|
Peak Pulsed Forward Current (mA)
|
1500 (less than 1/10 duty cycle@1KHz)
|
|
ESD Sensitivity
(HBM per MIL-STD-883E Method 3015.7)
|
±4000V (Class III)
|
|
LED Junction Temperature (°C)
|
120 °C
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
Enviroment
Operation Temperature: -40°C ~ 90°C
Storage Temperature: -40°C ~ 120°C
