| Products > LED Component > High Power LED |
|
|
|

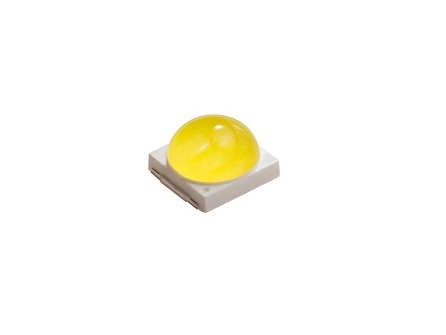

| 2W 3030 3V/6V Dome LED |
| | ．High Color rendering index
．Good color uniformity
．Lead free reflow soldering
．RoHS compliant
．Instant light (less than 100ns)
．No UV |
|
|
|
Item No.: AT3030D-2LEPA、AT30303D-2LEXX-RX、AT30306D-2LEXX-RX
LEDs
|
Color
|
Part Number Emitter
|
Luminous Flux ΦV (lm)
|
|
Min.
|
Typ.
|
Min.
|
Typ.
|
|
PC Amber
|
AT30303D-2LEPA
|
110
|
120
|
135
|
185
|
|
Color
|
Part Number Emitter
|
Min.
|
Typ.
|
Typ.
|
CRI
|
|
White
|
2LEW-R7
|
120
|
145
|
262
|
70
|
|
Neutral White
|
2LENW-R7
|
120
|
145
|
262
|
70
|
|
White
|
2LEW-R8
|
110
|
131
|
237
|
80
|
|
Neutral White
|
2LENW-R8
|
110
|
131
|
237
|
80
|
|
Warm White
|
2LEWW-R8
|
100
|
122
|
221
|
80
|
|
Color
|
Color Temperature CCT
|
Total Included Angle (degrees) θ0.90V
|
Viewing Angle (degrees)
2 θ1/2
|
|
Min.
|
Typ.
|
Max.
|
|
PC Amber
|
587.8nm
|
589 nm
|
590.4nm
|
170
|
130
|
|
White
|
4745 K
|
5850 K
|
6950 K
|
170
|
130
|
|
Neutral White
|
3700 K
|
3975 K
|
4250 K
|
170
|
130
|
|
Warm White
|
2580 K
|
2900 K
|
3250 K
|
170
|
130
|
| |
|
|
|
|
|
|
|
|
|
|
Please contact us for more detail.
