Products > LED Component > High Power LED

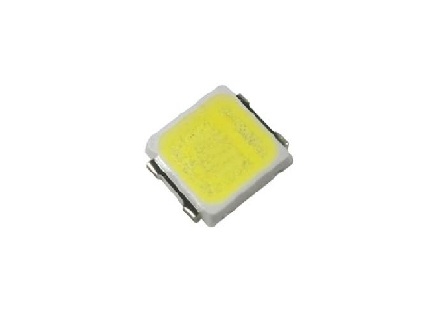

1W 3030 6V LED
 .High Color rendering index
.Good color uniformity
.Lead free reflow soldering
.RoHS compliant
.Instant light (less than 100ns)
.No UV

Item No.: AT30306S-1LEXX

LEDs

Radiation

Pattern

Color

Part Number

Emitter

Luminous Flux ΦV (lm)

CRI

Min.

Typ.

Min.

Lambertian

White

AT30306S-1LEW

110

125

80

Neutral White

AT30306S-1LENW

110

123

80

Warm White

AT30306S-1LEWW

100

119

80

Radiation

Pattern

Color

Color Temperature CCT

Total Included Angle (degrees) θ0.90V

Viewing Angle (degrees)
2
θ1/2

Min.

Typ.

Max.

Lambertian

White

4745 K

5850 K

6950 K

160

120

Neutral White

3700 K

3975 K

4250 K

160

120

Warm White

2580 K

2900 K

3250 K

160

120



Enviroment
Operation Temperature: -40°C ~ 90°C
Storage Temperature: -40°C ~ 120°C



Please contact us for more detail.
