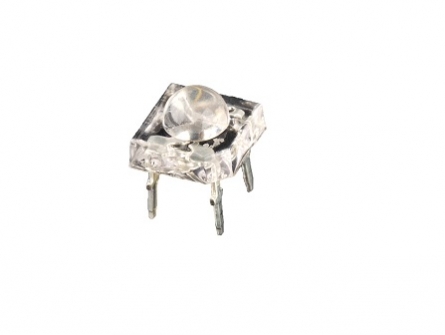

Item No.: ADR050P-2030EUA
LEDs
|
Parameter
|
Symbol
|
Rating
|
Unit
|
|
Power Dissipation Per Chip
|
Pd
|
120
|
mW
|
|
Average Forward Current Per Chip
|
IF
|
70
|
mA
|
|
Reverse Voltage Per Chip
|
VR
|
5
|
V
|
|
Pulse Forward Current
|
IFP
|
100
|
mA
|
|
Soldering Temperature
|
Tsld
|
260℃ for 5sec.
|
|
Parameter
|
Symbol
|
Min.
|
Typ.
|
Max.
|
Unit
|
Condition
|
|
Forward Voltage
|
VF
|
-
|
2.0
|
-
|
V
|
IF＝20 mA
|
|
Viewing Angle
|
2θ1/2
|
-
|
30
|
-
|
deg
|
|
Luminous Intensity
|
IV
|
-
|
5100
|
-
|
mcd
|
|
Dominant Wavelength
|
λD
|
585
|
-
|
595
|
nm
|
|
Spectral half bandwidth
|
Δλ
|
-
|
25
|
-
|
|
Reverse Current
|
IR
|
-
|
-
|
10
|
μA
|
VR＝5 V
|
| |
|
|
|
|
|
|
|
|
|
Enviroment
Operation Temperature: -30°C ~ 80°C
Storage Temperature: -40°C ~ 100°C
Please contact us for more detail.
