Products > LED Component > High Power LED

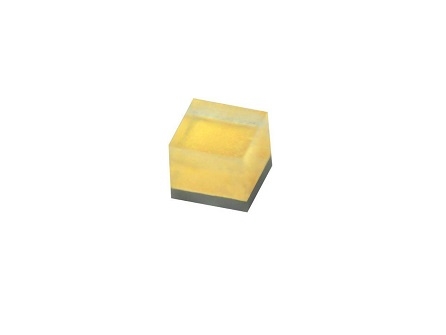

3W 1616 Power LED
 .Low thermal resistance: < 6°C/W.
.RoHS compliant
.Moisture Sensitivity Level: 3
.ESD protection up to 2KV
.SMT soldering solution - Reflow solderable -
JEDEC J-STD-020C compatible

Item No.: AH1616CP-3LEXX

LEDs

Characteristics

Symbol

Value

Unit

Remark

Typ. Forward Current

IF

350

mA

-

Max. Forward Current

If max

700

W

Red / Amber

1000

Blue / Green

Power Dissipation (@350mA)

Pd

0.77

W

Red / Amber

1.12

Blue / Green

Color

Forward Current (mA)

Wavelength (λd, nm)

Operation Temp.

()

Luminous Flux (lm)

Min.

Typ.

Red

350

600 610

25

60

80

610 620

50

70

620 630

45

55

650 670

20

30

Green

350

520 530

25

100

120

Blue

450 460

15

20

Amber

585 595

50

60



 Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 100°C

 Please contact us for more detail.
