Products > LED Component > UV LED / UVA LED

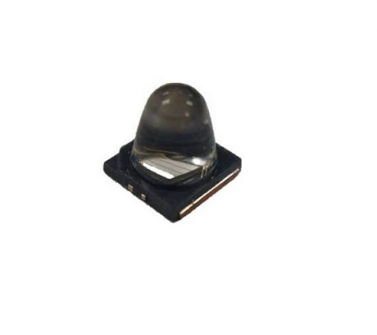

3535 3W 30 degree UV LED
 .100% foot print compatible with Cree XP-C / XP-E / XP-G
.Best thermal material solution of the world
.Best Moisture Sensitivity: JEDEC Level 1
.RoHS compliant

Item No.: AT3535F-3NEV3640

LEDs

Radiation

Pattern

Color

Part Number

Radiometric Power (mW)

@500mA

Refer @350mA

Refer @700mA

Emitter

Min.

Typ.

Typ.

Typ.

Narrow

UV 3637

AT3535F-3NEV3637

620

700

495

950

UV 3839

AT3535F-3NEV3839

830

970

700

1310

UV 3940

AT3535F-3NEV3940

830

970

700

1310

Radiation
Pattern

Color

Dominant Wavelength λD

Total

Included Angle (degrees) θ0.90V

Viewing Angle (degrees) 2 θ1/2

Min.

Typ.

Max.

Narrow

UV 3637

360 nm

368 nm

375 nm

150

35

UV 3839

380 nm

385 nm

390 nm

150

35

UV 3940

390 nm

395 nm

400 nm

150

35



 Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 100°C

 Please contact us for more detail.
