Products > LED Component > UV LED / UVA LED

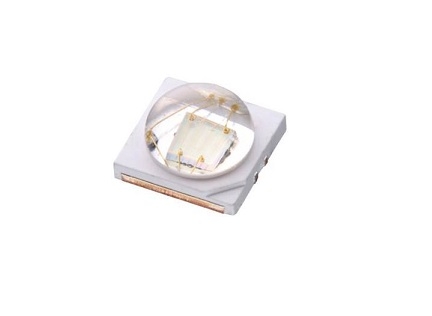

3535 3W 130 degree UV LED
 .100% foot print compatible with Cree XP-C / XP-E / XP-G
.Best thermal material solution of the world
.Best Moisture Sensitivity: JEDEC Level 1
.RoHS compliant

Item No.: AP3535F-3LEV4143

LEDs

Radiation

Pattern

Color

Radiometric Power (mW)



@350mA

Refer @700mA



Min.

Typ.

Min.

Typ.



Lambertian

UV

435

550

810

1030



Color

Forward Voltage VF (V)

Thermal Resistance Junction to Slug (°C/ W)



@ 350mA

Refer @700mA



Min.

Typ.

Max.

Typ.



UV

2.85

3.20

3.85

3.60

8



Radiation

Pattern

Color

Peak Wavelength λP

Total

Included Angle (degrees) θ0.90V

Viewing Angle (degrees) 2 θ1/2



Min.

Typ.

Max.



Lambertian

UV-L

415 nm

425 nm

435 nm

160

130



Parameter

UV-L

DC Forward Current (mA)

700

Peak Pulsed Forward Current (mA)

1000 (less than 1/10 duty cycle@1KHz)

LED Junction Temperature

120°C



Enviroment
Operation Temperature: -40°C ~ 90°C
Storage Temperature: -40°C ~ 120°C

Please contact us for more detail.
