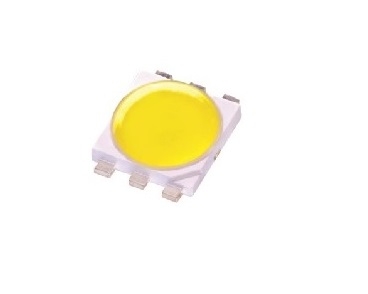

Item No.: AT404016Q-2LEXX-RX
LEDs
|
Radiation
Pattern
|
Color
|
Part Number
Emitter
|
Luminous Flux ΦV (lm)
|
CRI Typ.
|
|
Min.
|
Typ.
|
|
Lambertian
|
White
|
AT404016Q-2LEWT-R7
|
260
|
330
|
70
|
|
Neutral White
|
AT404016Q-2LENW-R7
|
245
|
320
|
70
|
|
Warm White
|
AT404016Q-2LEWW-R7
|
225
|
280
|
73
|
|
Color
|
Color Temperature CCT
|
Total
Included Angle (degrees) θ0.90V
|
Viewing Angle (degrees)
2 θ1/2
|
|
Min.
|
Typ.
|
Max.
|
|
White
|
5000 K
|
5740 K
|
6480 K
|
160
|
140
|
|
Neutral White
|
3710 K
|
4370 K
|
5030 K
|
160
|
140
|
|
Warm White
|
2580 K
|
3000 K
|
3220 K
|
160
|
140
|
|
Parameter
|
White / Neutral White / Warm White
|
|
Max DC Forward Current (mA)
|
120
|
|
Peak Pulsed Forward Current (mA)
|
150(less than 1/10 duty cycle@1KHz)
|
|
ESD Sensitivity
(HBM per MIL-STD-883E Method 3015.7)
|
>±500V
|
|
LED Junction Temperature
|
120 °C
|
| |
|
|
|
|
|
|
|
|
|
|
Enviroment
Operation Temperature: -40°C ~ 105°C
Storage Temperature: -40°C ~ 120°C
Please contact us for more detail.
