Products > LED Component > UV LED / UVA LED

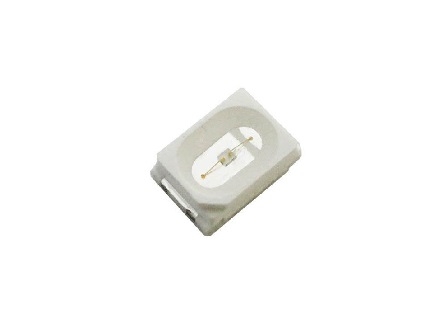

3020 30mA UV LED
 Industry’s first lighting-class LED
Low Voltage DC operated
Instant light (less than 100ns)

Item No.: AT3020-30LEV3941-2AA

LEDs

Radiation

Pattern

Color

Part Number

Radiometric Power (mW)

Emitter

Min.

Typ.

Lambertian

UV3941

AT3020-30LEV3941-2AA

25

29

Color

Forward Voltage VF (V)

Thermal Resistance Junction to Slug (°C/ W)

Min.

Typ.

Max.

UV3941

2.9

3.3

3.6

120

Radiation
Pattern

Color

Peak WavelengthλP

Total

Included Angle (degrees)
θ0.90V

Viewing Angle (degrees)
2
θ1/2

Min.

Typ.

Max.

Lambertian

UV3941

390 nm

400 nm

410 nm

160

120

Parameter

UV3941

DC Forward Current (mA)

30

Peak Pulsed Forward Current (mA)

60 (less than 1/10 duty cycle@1KHz)

ESD Sensitivity

(HBM per MIL-STD-883E Method 3015.7)

> ±500V

LED Junction Temperature (°C)

120 °C



 Enviroment
Operation Temperature: -40°C ~90°C
Storage Temperature: -40°C ~ 120°C

 Please contact us for more detail.
