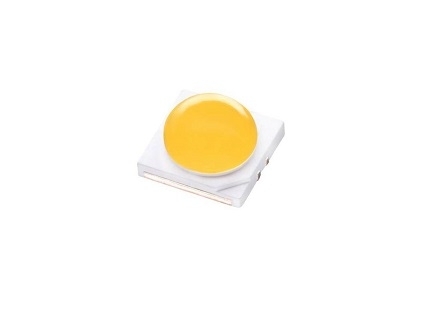

Item No.: AT3535FE-5LEPA
LEDs
|
|
Color
|
Part Number
Emitter
|
Luminous Flux ΦV(lm)
|
|
|
@350mA
|
Refer @700mA
|
Refer@1000mA
|
Refer @1200mA
|
|
|
Min.
|
Typ.
|
Typ.
|
Typ.
|
Typ.
|
|
|
PC Amber
|
AT3535FE-5LEPA
|
90
|
100
|
179
|
234
|
262
|
|
Color
|
Forward Voltage VF (V)
|
Thermal Resistance Junction to Slug (°C/ W)
|
|
@350mA
|
Refer @700mA
|
Refer
@1000mA
|
Refer @1200mA
|
|
Min.
|
Typ.
|
Max.
|
Typ.
|
Typ.
|
Typ.
|
|
PC Amber
|
2.70
|
3.05
|
3.30
|
3.40
|
3.70
|
3.90
|
7
|
|
Radiation Pattern
|
Color
|
Dominant Wavelength λD
|
Total
Included Angle (degrees) θ0.90V
|
Viewing Angle (degrees) 2 θ1/2
|
|
Min.
|
Typ.
|
Max.
|
|
Lambertian
|
PC Amber
|
587.8 nm
|
589 nm
|
590.4 nm
|
160
|
130
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Enviroment
Operation Temperature: -40°C ~ 90°C
Storage Temperature: -40°C ~ 120°C
Please contact us for more detail.
