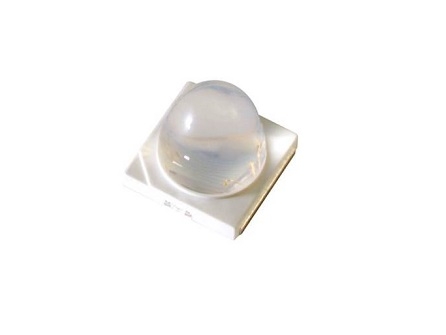

Item No.: AT3535F-4FEX
LEDs
|
Color
|
Part Number
|
Luminous Flux or Power
|
|
@350mA
|
Refer @700mA
|
Refer @1000mA
|
|
Emitter
|
Min.
|
Typ.
|
Typ.
|
Typ.
|
|
Red
|
AT3535F-4FER
|
50 lm
|
65 lm
|
123 lm
|
166 lm
|
|
Green
|
AT3535F-4FEG
|
110 lm
|
132 lm
|
210 lm
|
261 lm
|
|
Royal Blue
|
AT3535F-4FERB
|
515 mW
|
630 mW
|
1130 mW
|
1500 mW
|
|
Color
|
Dominant Wavelength λD
|
Total Included Angle (degrees) θ0.90V
|
Viewing Angle (degrees)
2 θ1/2
|
|
Min.
|
Typ.
|
Max.
|
|
Red
|
620 nm
|
623 nm
|
630 nm
|
140
|
45
|
|
Green
|
520 nm
|
525 nm
|
535 nm
|
140
|
45
|
|
Royal Blue
|
450 nm
|
455 nm
|
460 nm
|
140
|
45
|
| |
|
|
|
|
|
|
|
|
|
|
Enviroment
Operation Temperature: -40°C ~ 90°C
Storage Temperature: -40°C ~ 120°C
Please contact us for more detail.
