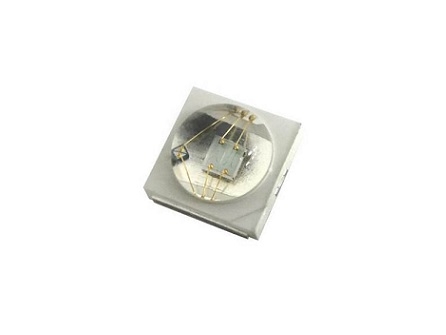

Item No.: AT3535E-1LEX
LEDs
|
Radiation Pattern
|
Color
|
Part Number
|
Luminous Flux ΦV(lm)
|
|
Emitter
|
Min.
|
Typ.
|
|
Lambertian
|
Red
|
AT3535E-1LER
|
40
|
48
|
|
Green
|
AT3535E-1LEG
|
70
|
85
|
|
Blue
|
AT3535E-1LEB
|
13.9
|
18
|
|
Radiation Pattern
|
Color
|
Dominant Wavelength λD
|
Total
Included Angle (degrees) θ0.90V
|
Viewing Angle (degrees)
2 θ1/2
|
|
Min.
|
Typ.
|
Max.
|
|
Lambertian
|
Red
|
620 nm
|
623 nm
|
630 nm
|
160
|
130
|
|
Green
|
520 nm
|
525 nm
|
535 nm
|
160
|
130
|
|
Blue
|
455 nm
|
465 nm
|
470 nm
|
160
|
130
|
Enviroment
Operation Temperature: -40°C ~ 90°C
Storage Temperature: -40°C ~ 120°C
Please contact us for more detail.
