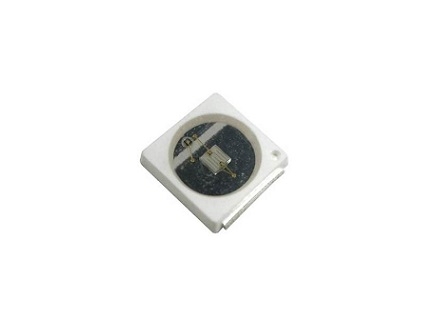

1W 3030 Flat Single Color LED
 Good color uniformity
Lead free reflow soldering
RoHS compliant
Instant light (less than 100ns)
No UV

Item No.: AT3030E-1FEX

LEDs

Radiation Pattern

Color

Part Number

Luminous Flux ΦV(lm)



Emitter

Min.

Typ.



Flat

Red

AT3030E-1FER

30

42



Green

AT3030E-1FEG

50

65



Blue

AT3030E-1FEB

10.7

15.5



Radiation Pattern

Color

Dominant Wavelength λD

Total

Included Angle (degrees) θ0.90V

Viewing Angle (degrees) 2 θ1/2

Min.

Typ.

Max.

Flat

Red

620 nm

623 nm

630 nm

160

120

Green

515 nm

525 nm

535 nm

160

120

Blue

455 nm

465 nm

475 nm

160

120

























Enviroment
Operation Temperature: -40°C ~ 90°C
Storage Temperature: -40°C ~ 120°C

 Please contact us for more detail.
