Color

Part Number

Emitter

Luminous Flux  or Radiometric Power

@1400mA

Refer @4500mA

Min.

Typ.

Min.

Typ.

Red

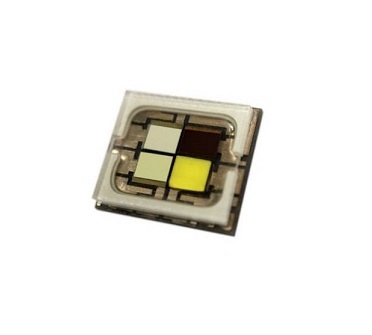

AT6458MO-65LERGBW-8A

102 lm

120 lm

235 lm

285 lm

Blue

1480 mW

1750 mW

3600 mW

4350 mW

Green

265 lm

315 lm

500 lm

605 lm

White

340 lm

400 lm

805 lm

965 lm

Radiation
Pattern

Color

Dominant Wavelength λD, or

Color Temperature CCT

Total

Included Angle (degrees) θ0.90V

Viewing Angle (degrees)
2 θ1/2

Min.

Typ.

Max.

Lambertian

Red

620 nm

623 nm

630 nm

160

120

Blue

449 nm

455 nm

457 nm

160

120

Green

524 nm

527 nm

536 nm

160

120

White

5550 K

6300 K

7050 K

160

120
