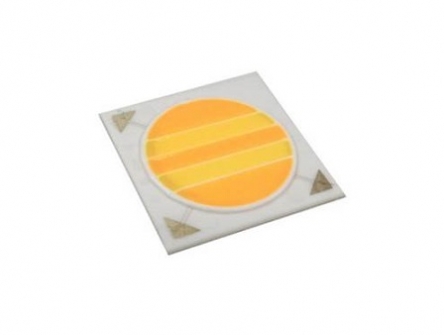

Item No.: AT2424CBD-35LEWM2748
LEDs
|
Radiation
Pattern
|
Color
|
Part Number
Emitter
|
DC Forward
Current (mA)
|
Luminous Flux ΦV (lm)
|
CRI
|
|
Min.
|
Typ.
|
Typ.
|
|
Lambertian
|
Channel 1
|
AT2424CBD-35LEWM2748
|
50
|
3160
|
3590
|
90
|
|
Channel 2
|
350
|
2640
|
3000
|
|
Color
|
Bin Code
|
Color Temperature CCT
|
Total
Included Angle (degrees) θ0.90V
|
Viewing Angle (degrees)
2 θ1/2
|
|
Min.
|
Typ.
|
Max.
|
|
Channel 1
|
U0
|
4490 K
|
4800 K
|
5010 K
|
160
|
120
|
|
Channel 2
|
M1
|
2670 K
|
2700 K
|
2840 K
|
160
|
120
|
|
Color
|
Forward Voltage VF (V)
|
Thermal Resistance
Junction to Board (°C/ W)
|
|
Min.
|
Typ.
|
Max.
|
|
Channel 1
|
33.0
|
36.0
|
38.5
|
0.9
|
|
Channel 2
|
33.0
|
35.0
|
38.5
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Enviroment
Operation Temperature: -40°C ~ 90°C
Storage Temperature: -40°C ~ 120°C
Please contact us for more detail.
