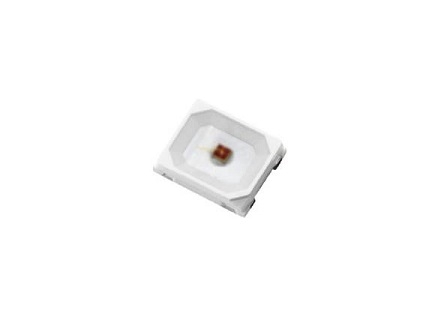

Item No.: AY2835S-05LER
LEDs
|
Parameter
|
Symbol
|
Min.
|
Typ.
|
Max.
|
Unit
|
Condition
|
|
Luminous Flux(1)
|
Φ
|
15
|
-
|
24
|
Im
|
IF=150mA
|
|
Forward Voltage(2)
|
VF
|
1.9
|
-
|
2.9
|
V
|
IF=150mA
|
|
Viewing Angle
|
2θ1/2
|
-
|
120
|
-
|
deg
|
IF=50mA
|
|
Reverse Current
|
IR
|
-
|
-
|
50
|
μA
|
VR =5V
|
|
Parameter
|
Symbol
|
Rating
|
Unit
|
|
Forward Current
|
IF
|
150
|
mA
|
|
Peak Forward Current
(Duty 1/10 @10ms)
|
IFP
|
300
|
mA
|
|
Power Dissipation
|
Pd
|
435
|
mW
|
|
Thermal Resistance
(Junction / Soldering point)
|
Rth J-S
|
50
|
℃/W
|
|
Junction Temperature
|
T j
|
115
|
℃
|
|
Soldering Temperature
|
Tsol
|
Reflow Soldering : 260 ℃ for 10 sec.
Hand Soldering : 350 ℃ for 3 sec.
|
| |
|
|
|
|
|
|
|
|
|
Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 100°C
Please contact us for more detail.
