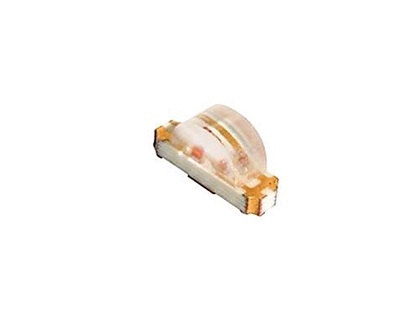

Item No.: SV-1206B-20URYG4AA-A
LEDs
|
chip
|
Light Color
|
Dice Material
|
Lens Color
|
|
a
|
KR: Super Red
|
AlInGaP
|
Water Clear
|
|
b
|
KG: Yellow Green
|
|
Parameter
|
Symbol
|
Red / Yellow Green
|
Test Condition
|
|
Min.
|
Typ.
|
Max.
|
Unit
|
|
Forward Voltage
|
VF
|
1.8 / 1.95
|
-
|
2.3
|
V
|
IF=5mA
|
|
Reverse Current
|
IR
|
-
|
-
|
10
|
μA
|
VR=5V
|
|
Spectral Line Half-Width
|
Δλ
|
17 / 15
|
-
|
-
|
nm
|
-
|
|
Peak Wavelength
|
λp
|
-
|
637 / 571
|
-
|
nm
|
Measurement @Peak
|
|
Dominant Wavelength
|
λd
|
-
|
630 / 570
|
-
|
nm
|
IF=5mA
|
|
Half Intensity Angle
|
2 θ 1/2
|
-
|
130
|
-
|
deg
|
|
Luminous Intensity
|
IV
|
6.3 / 4.0
|
20 / 10
|
-
|
mcd
|
| |
|
|
|
|
|
|
|
|
|
Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 85°C
