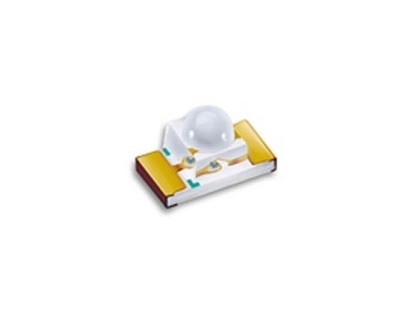

Item No.: AEO1206F-2020IR94
LEDs
|
Parameter
|
Symbol
|
Min.
|
Typ.
|
Max.
|
Unit
|
Test Condition
|
|
Radiant Intensity
|
Ee
|
1.0
|
3.5
|
-
|
mW /sr
|
IF=20mA
|
|
-
|
15
|
-
|
IF=100mA
Pulse Width≦100μs ,Duty≦1%
|
|
Viewing Angle
|
2 θ 1/2
|
-
|
20
|
-
|
deg
|
IF=20mA
|
|
Peak Emission
Wavelength
|
λp
|
-
|
940
|
-
|
nm
|
|
Spectral Line
Half-Width
|
Δλ
|
-
|
45
|
-
|
nm
|
|
Forward Voltage
|
VF
|
-
|
1.2
|
1.5
|
V
|
IF=20mA
|
|
-
|
1.5
|
1.8
|
IF=100mA
Pulse Width≦100μs ,Duty≦1%
|
|
-
|
2.6
|
4.0
|
IF=1A
|
|
Reverse Current
|
IR
|
-
|
-
|
10
|
μA
|
VR=5V
|
Enviroment
Operation Temperature: -20°C ~ 85°C
Storage Temperature: -40°C ~ 85°C
Please contact us for more detail.
