Products > LED Component > UV LED

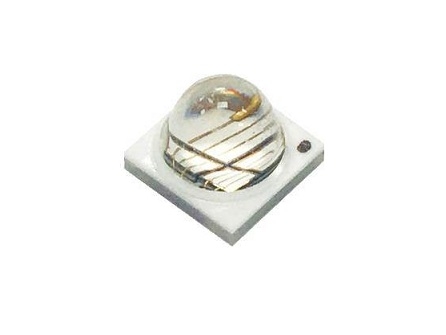

5050 10W 3V 100 degree UV LED
 Dimension: 5 mm(L) x 5mm(W)

Item No.: AT50503V-10MGEV3940

LEDs

Radiation Pattern

Color

Part Number

Emitter

Radiometric Power (mW)

@1000mA

Refer @1400mA

Min.

Typ.

Typ.

Lambertian

UV 3940

AT50503V-10MGEV3940

3150

3700

5100

Color

Forward Voltage VF (V)

@ 1000mA

Refer @1400mA

Min.

Typ.

Max.

Typ.

UV 3940

6.00

6.80

7.60

6.94

Radiation Pattern

Color

Peak Wavelength λP

Total

Included Angle (degrees) θ0.90V

Viewing Angle (degrees)

2 θ1/2

Min.

Typ.

Max.

Lambertian

UV 3940

390 nm

395 nm

400 nm

170

100




Enviroment

Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 100°C


Please contact us for more detail.
