Products > LED Component > Full Color Power LED

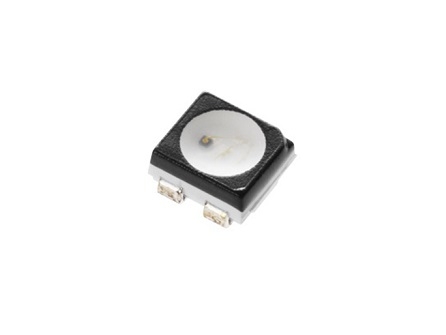

0.5W 2121 RGB LED
 .4 pin
.Full-color type.
*The gule surface is completely atomized.



Item No.: AZ2121SD-05LERGB-4AAB、AZ2121SDCW-05LERGB-4AAB

LEDs

Parameter

Symbol

Min.

Typ

Max.

Unit

Condition

Forward Voltage

VF

R

1.7

-

2.5

V

IF=8mA

G

2.5

-

3.1

IF=5mA

B

2.5

-

3.1

IF=3mA

Luminous Intensity

Iv

R

55.0

-

93.0

mcd

IF=8mA

G

160.0

-

270.0

IF=5mA

B

19.0

-

31.8

IF=3mA

Dominant Wavelength

Wd

R

618.0

-

628.0

nm

IF=8mA

G

522.0

-

530.0

IF=5mA

B

463.0

-

471.0

IF=3mA

Viewing Angle

2θ1/2

-

-

110

-

deg

IF=10mA

Reverse Current

IR

-

-

-

0.5

μA

VR=10V

Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 110°C


Please contact us for more detail.
