Products > LED Component > UV LED

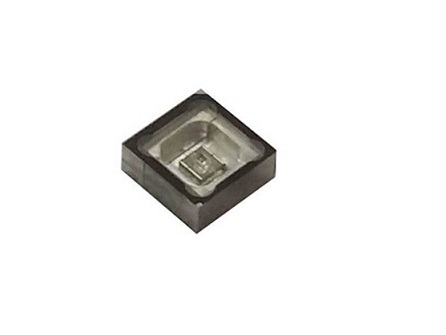

3535 0.1W Flat UV LED
 UV 265nm-285nm

Item No.: AT3535FT-01LEV2628

LEDs

Radiation

Pattern

Color

Part Number Emitter

Radiometric Power (mW)

Min.

Typ.

Lambertian

UV2628

AT3535FT-01LEV2628

1.5

2.0

Color

Forward Voltage VF (V)

Thermal Resistance Junction to Slug (°C/ W)

Min.

Typ.

Max.

UV2628

5.7

6.5

7.3

37

Radiation

Pattern

Color

Peak Wavelength λP

Total Included Angle (degrees) θ0.90V

Viewing Angle (degrees)
2
θ1/2

Min.

Typ.

Max.

Lambertian

UV2628

265 nm

278 nm

285 nm

160

125



Enviroment
Operation Temperature: -40°C ~ 60°C
Storage Temperature: -40°C ~ 100°C

Please contact us for more detail.
