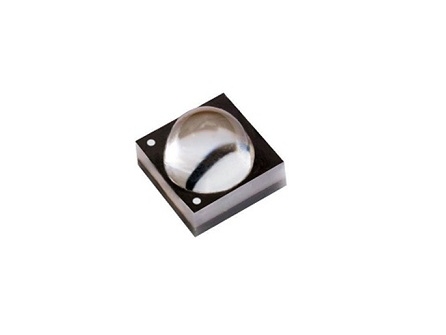

Item No.: AT3535FQZ-335NEV3640
LEDs
|
Radiation
Pattern
|
Color
|
Part Number
|
Radiometric Power (mW)
|
|
@700mA
|
Refer @500mA
|
|
Emitter
|
Min.
|
Typ.
|
Typ.
|
|
Lambertian
|
UV 3637
|
AT3535FQZ-335NEV3637
|
685
|
930
|
670
|
|
UV 3839
|
AT3535FQZ-335NEV3839
|
685
|
950
|
685
|
|
UV 3940
|
AT3535FQZ-335NEV3940
|
755
|
1000
|
720
|
|
Color
|
Forward Voltage VF (V)
|
Thermal Resistance Junction to Slug (°C/ W)
|
|
@ 7000mA
|
Refer @500mA
|
|
Min.
|
Typ.
|
Max.
|
Typ.
|
|
UV 3637
|
3.4
|
3.9
|
4.4
|
3.6
|
8
|
|
UV 3839/UV 3940
|
3.2
|
3.5
|
4.0
|
3.4
|
|
Radiation
Pattern
|
Color
|
Peak Wavelength λP
|
Total
Included Angle (degrees) θ0.90V
|
Viewing Angle (degrees) 2 θ1/2
|
|
Min.
|
Typ.
|
Max.
|
|
Lambertian
|
UV 3637
|
365 nm
|
367.5 nm
|
370 nm
|
60
|
35
|
|
UV 3839
|
380 nm
|
385 nm
|
390 nm
|
|
UV 3940
|
390 nm
|
395 nm
|
400 nm
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 100°C
