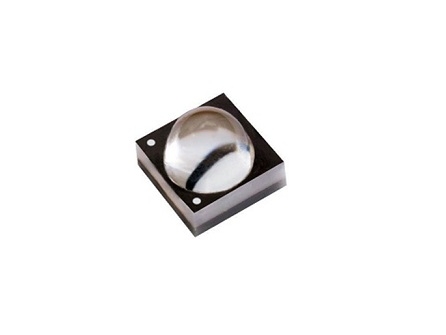

3535 3W 60 degree Quartz lens UV LED
 .100% foot print compatible with Cree XP-C / XP-E / XP-G
.Best thermal material solution of the world
.Best Moisture Sensitivity: JEDEC Level 1
.RoHS compliant
.Quartz Glass Lens
.View angle 60°

Item No.: AT3535FQZ- 360MEV3640

LEDs

Radiation

Pattern

Color

Part Number

Radiometric Power (mW)

@700mA

Refer @500mA

Emitter

Min.

Typ.

Typ.

Lambertian

UV 3637

AT3535FQZ-360MEV3637

685

950

690

UV 3839

AT3535FQZ-360MEV3839

685

970

705

UV 3940

AT3535FQZ-360MEV3940

755

1030

740

Color

Forward Voltage VF (V)

Thermal Resistance Junction to Slug (°C/ W)

@ 7000mA

Refer @500mA

Min.

Typ.

Max.

Typ.

UV 3637

3.4

3.9

4.4

3.6

8

UV 3839/UV 3940

3.2

3.5

4.0

3.4

Radiation
Pattern

Color

Peak Wavelength λP

Total

Included Angle (degrees) θ0.90V

Viewing Angle (degrees) 2 θ1/2

Min.

Typ.

Max.

Lambertian

UV 3637

365 nm

367.5 nm

370 nm

75

60

UV 3839

380 nm

385 nm

390 nm

UV 3940

390 nm

395 nm

400 nm



Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 100°C

Please contact us for more detail.
