Products > LED Component > UV LED

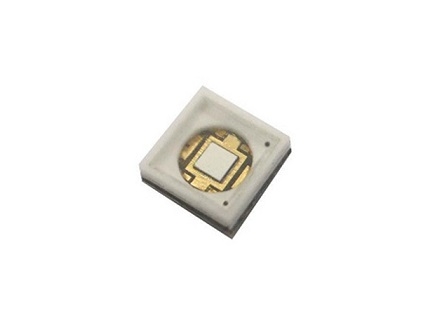

3535 3W 120 degree Quartz lens UV LED
 .100% foot print compatible with Cree XP-C / XP-E / XP-G
.Best thermal material solution of the world
.Best Moisture Sensitivity: JEDEC Level 1
.RoHS compliant
.Quartz Glass Lens
.View angle 120°

Item No.: AT3535FTQZ-3120LEV3640

LEDs

Radiation

Pattern

Color

Part Number

Radiometric Power (mW)

@700mA

Refer @500mA

Emitter

Min.

Typ.

Typ.

Lambertian

UV 3637

AT3535FTQZ-3120LEV3637

755

1000

720

UV 3839

AT3535FTQZ-3120LEV3839

755

1020

735

UV 3940

AT3535FTQZ-3120LEV3940

755

1070

770

Color

Forward Voltage VF (V)

Thermal Resistance Junction to Slug (°C/ W)

@ 7000mA

Refer @500mA

Min.

Typ.

Max.

Typ.

UV 3637

3.4

3.9

4.4

3.6

8

UV 3839/UV 3940

3.2

3.5

4.0

3.4

Radiation
Pattern

Color

Peak Wavelength λP

Total

Included Angle (degrees) θ0.90V

Viewing Angle (degrees) 2 θ1/2

Min.

Typ.

Max.

Lambertian

UV 3637

365 nm

367.5 nm

370 nm

152

120

UV 3839

380 nm

385 nm

390 nm

UV 3940

390 nm

395 nm

400 nm



Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 100°C

Please contact us for more detail.
