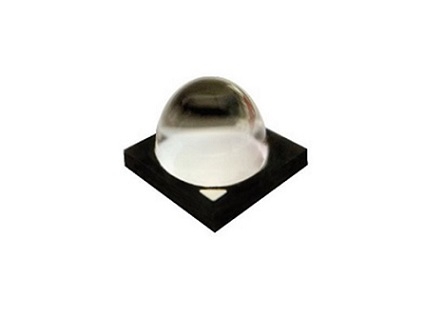

Item No.: AT7070QZ-1030NEV3640
LEDs
|
Radiation
Pattern
|
Color
|
Part Number
|
Radiometric Power (mW)
|
|
@1000mA
|
Refer @1400mA
|
|
Emitter
|
Min.
|
Typ.
|
Typ.
|
|
Lambertian
|
UV 3637
|
AT7070QZ-1030NEV3637
|
2000
|
2900
|
3970
|
|
UV 3839
|
AT7070QZ-1030NEV3839
|
2000
|
3000
|
4100
|
|
UV 3940
|
AT7070QZ-1030NEV3940
|
2000
|
3200
|
4380
|
|
Color
|
Forward Voltage VF (V)
|
|
@ 1000mA
|
Refer @1400mA
|
|
Min.
|
Typ.
|
Max.
|
Typ.
|
|
UV 3637
|
6.4
|
7.4
|
8.4
|
7.6
|
|
UV 3839/ UV 3940
|
6.0
|
6.8
|
7.6
|
7.0
|
|
Radiation
Pattern
|
Color
|
Peak Wavelength λP
|
Total
Included Angle (degrees) θ0.90V
|
Viewing Angle (degrees) 2 θ1/2
|
|
Min.
|
Typ.
|
Max.
|
|
Lambertian
|
UV 3637
|
365 nm
|
367.5 nm
|
370 nm
|
65
|
30
|
|
UV 3839
|
380 nm
|
385 nm
|
390 nm
|
|
UV 3940
|
390 nm
|
395 nm
|
400 nm
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 100°C
Please contact us for more detail.
