Products > LED Component > Full Color Power LED

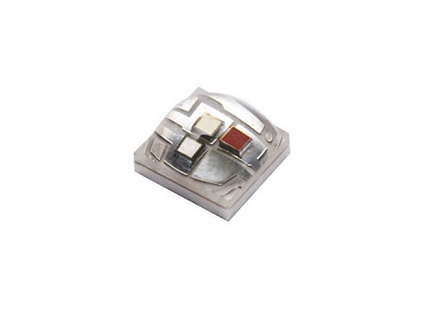

3W 3030 Lambertian RGB LED
 .Compact light source
.R, G, B three color in one package
.Maximum drive current: 300mA per LED die
.Lead free reflow soldering
.Superior ESD protection
.RoHS compliant

Item No.: AT3030-3LERGB

LEDs

Color

Part Number

Emitter

Luminous Flux ΦV (lm)

Minimum

Typical

Red

AT3030-3LERGB

30

36

Green

40

52

Blue

8

11

Color

Forward Voltage VF (V)

Thermal Resistance Junction to Slug
(
°C/ W)

Min.

Typ.

Max.

Red

1.9

2.3

2.7

10

Green

3.0

3.5

4.0

Blue

2.9

3.4

3.9

Radiation
Pattern

Color

Dominant Wavelength λD,

Total

Included Angle (degrees) θ0.90V

Viewing Angle (degrees)
2
θ1/2

Min.

Typ.

Max.

Lambertian

Red

620 nm

623 nm

630 nm

170

155

Green

518 nm

522 nm

528 nm

Blue

453 nm

457 nm

460 nm



Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 120°C

Please contact us for more detail.
