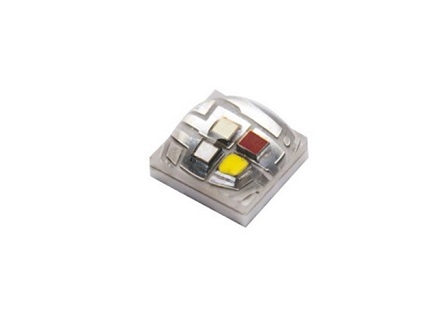

3W 3030 RGBW LED
 .Compact light source
.R, G, B, WT/NW/WW four color in one package
.Maximum drive current: 300mA per LED die
.Lead free reflow soldering
.Superior ESD protection
.RoHS compliant

Item No.: AT3030-3LERGBXX

LEDs

Color

Part Number Emitter

Luminous Flux ΦV(lm)

Minimum

Typical

Red

AT3030-3LERGBWT

28

34

Green

40

51

Blue

8

10

White

40

58

Red

AT3030-3LERGBNW

28

34

Green

40

51

Blue

8

10

Neutral White

34

49

Red

AT3030-3LERGBWW

28

34

Green

40

51

Blue

8

10

Warm White

31

46

Radiation Pattern

Color

Dominant Wavelength λD, or

Color Temperature CCT

Total Included Angle (degrees) θ0.90V

Viewing Angle (degrees) 2 θ1/2



Min.

Typ.

Max.



Lambertian

Red

620 nm

624 nm

630 nm

170

155



Green

520 nm

525 nm

530 nm



Blue

453 nm

457 nm

460 nm



White

5700 K

6350 K

7000 K



Neutral White

3700 K

3950 K

4250 K



Warm White

2870 K

3000 K

3220 K



Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 120°C
