Products > LED Component > Full Color Power LED

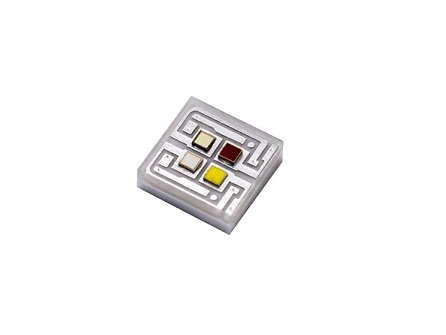

2W 3030 Flat RGBW LED
 .Compact light source
.R, G, B, WT/NW/WW four color in one Package
.Maximum drive current: 250mA per LED die
.Lead free reflow soldering
.Superior ESD protection
.RoHS compliant

Item No.: AT3030FT-2LERGBXX

LEDs

Color

Part Number Emitter

Luminous Flux ΦV(lm)

Minimum

Typical

Red

AT3030FT-2LERGBWT

14

17

Green

19

26

Blue

4.4

5.5

White

23

29

Red

AT3030FT-2LERGBNW

14

17

Green

19

26

Blue

4.4

5.5

Neutral White

19

25

Red

AT3030FT-2LERGBWW

14

17

Green

19

26

Blue

4.4

5.5

Warm White

18

23

Radiation Pattern

Color

Dominant Wavelength λD, or

Color Temperature CCT

Total Included Angle (degrees) θ0.90V

Viewing Angle (degrees) 2 θ1/2

Min.

Typ.

Max.

Lambertian

Red

620 nm

624 nm

630 nm

170

155

Green

520 nm

525 nm

530 nm

Blue

453 nm

457 nm

460 nm

White

5700 K

6350 K

7000 K

Neutral White

3700 K

3950 K

4250 K

Warm White

2870 K

3000 K

3220 K



Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 120°C

Please contact us for more detail.
