Products > LED Component > Full Color Power LED

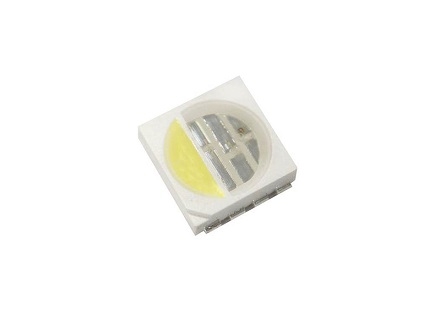

0.2W/0.5W 5050 Flat RGBW LED
 .R, G, B, W four color in one Package
.Good color uniformity
.Lead free reflow soldering
.RoHS compliant
.No UV
.Moisture Sensitivity Level - JEDEC Level 4

Item No.: AP5050FT-05LERGBWT

LEDs

Radiation
Pattern

Color

Part Number

Emitter

Test Current

Luminous Intensity (mcd)

or Flux ΦV(lm)

Minimum

Typical

Lambertian

Red

AP5050FT-05LERGBWT

20

625 mcd

750 mcd

Green

20

1400 mcd

1650 mcd

Blue

20

270 mcd

330 mcd

White

60

18 lm

22.5 lm

Color

Test Current

Forward Voltage VF (V)

Min.

Typ.

Max.

Red

20

1.8

2.2

2.6

Green

20

2.8

3.2

3.6

Blue

20

2.8

3.2

3.6

White

30

2.8

3.2

3.6

Color

Test Current

Dominant Wavelength λD, or

Color Temperature CCT

Total Included Angle (degrees)
θ0.90V

Viewing Angle (degrees)
2
θ1/2

Min.

Typ.

Max.

Red

20

620 nm

623 nm

626 nm

140

120

Green

20

519 nm

526 nm

534 nm

Blue

20

460 nm

465 nm

470 nm

White

30

5800 K

6100 K

6400 K



Enviroment
Operation Temperature: -40°C ~ 80°C
Storage Temperature: -40°C ~ 120°C

Please contact us for more detail.
