Products > LED Component > High Power LED

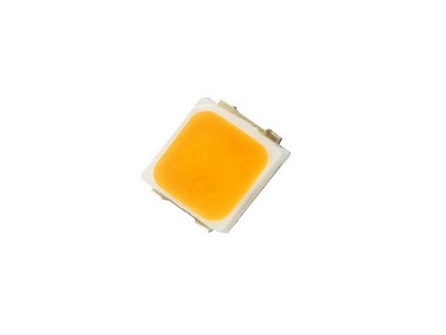

1W 3030 6V LED
 PC Amber LED

Item No.: AT30306S-1LEPA

LEDs

Radiation

Pattern

Color

Part Number

Emitter

Luminous Flux ΦV (lm)

Min.

Typ.

Lambertian

PC Amber

AT30306S-1LEPA

90

100

Color

Forward Voltage VF (V)

Thermal Resistance
Junction to Slug (
°C/ W)

Min.

Typ.

Max.

PC Amber

5.6

6.4

7.2

6

Color

Bin Code

Dominant Wavelength λD

Total Included Angle (degrees) θ0.90V

Viewing Angle (degrees)
2
θ1/2

Min.

Typ.

Max.

PC Amber

2

587.8 nm

589.0 nm

590.4 nm

160

120



 Enviroment
Operation Temperature: -40°C ~ 90°C
Storage Temperature: -40°C ~ 120°C

 Please contact us for more detail.
