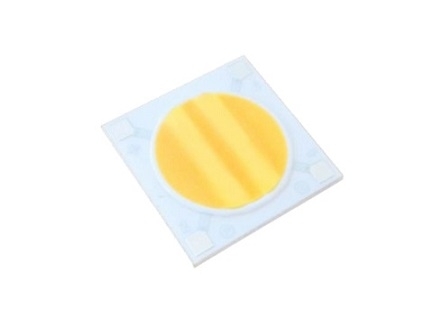

Item No.: AT1111CBD-8LBW4023
LEDs
|
Radiation
Pattern
|
Color
|
Part Number
Emitter
|
Luminous Flux ΦV (lm)
|
CRI Typical
|
|
Min.
|
Typ.
|
|
Lambertian
|
Channel 1
|
AT1111CBD-8LBW4023
|
560
|
640
|
90
|
|
Channel 2
|
450
|
540
|
|
Color
|
Forward Voltage VF (V)
|
Thermal Resistance Junction to Board (°C/ W)
|
|
Min.
|
Typ.
|
Max.
|
|
Channel 1
|
34.0
|
36.0
|
38.5
|
3.9
|
|
Channel 2
|
33.0
|
36.0
|
37.5
|
3.9
|
|
Color
|
Bin Code
|
Color Temperature CCT
|
Total
Included Angle
(degrees) θ0.90V
|
Viewing Angle
(degrees)
2 θ1/2
|
|
Min.
|
Typ.
|
Max.
|
|
Channel 1
|
S0
|
3800 K
|
4000 K
|
4100 K
|
160
|
120
|
|
Channel 2
|
L0
|
2200 K
|
2300 K
|
2400 K
|
160
|
120
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Enviroment
Operation Temperature: -40°C ~ 90°C
Storage Temperature: -40°C ~ 120°C
Please contact us for more detail.
E-mail: service@all-brite-intl.com
|
