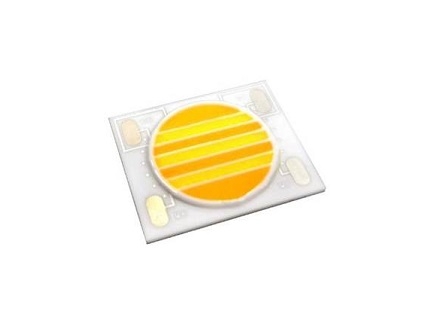

Item No.: AT2024CBD-25LBW4827
LEDs
|
Radiation
Pattern
|
Color
|
Part Number
Emitter
|
Luminous Flux ΦV (lm)
|
CRI Typ.
|
|
Min.
|
Typ.
|
|
Lambertian
|
Channel 1
|
AT2024CBD-25LBW4827
|
1630
|
1800
|
90
|
|
Channel 2
|
1440
|
1650
|
|
Color
|
Forward Voltage VF (V)
|
Thermal Resistance Junction to Board (°C/ W)
|
|
Min.
|
Typ.
|
Max.
|
|
Channel 1
|
35.0
|
37.0
|
39.0
|
1.1
|
|
Channel 2
|
35.0
|
36.0
|
38.0
|
1.1
|
|
Color
|
Bin Code
|
Color Temperature CCT
|
Total
Included Angle
(degrees) θ0.90V
|
Viewing Angle
(degrees)
2 θ1/2
|
|
Min.
|
Typ.
|
Max.
|
|
Channel 1
|
U0
|
4490 K
|
4800 K
|
5010 K
|
160
|
120
|
|
Channel 2
|
M1
|
2670 K
|
2700 K
|
2840 K
|
160
|
120
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Enviroment
Operation Temperature: -40°C ~ 90°C
Storage Temperature: -40°C ~ 120°C
Please contact us for more detail.
