Products > LED Component > Full Color Power LED

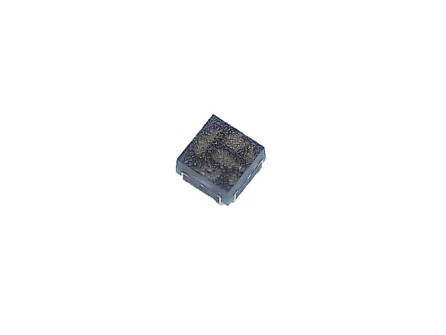

0606/0808/1010 4 pin RGB LED
 .Common Cathode/Common Anode
.0606/0808/1010 package.
.Full-color type.
.Compatible with infrared and vapor phase reflow solder process.
.Package:18000pcs/reel.
.Pb-free.
.Component weight is 0.8mg.

Item No.: AZ0606SD-002LERGBCA-4AABAZ0808SD-002LERGBCX-4AAB

AZ1010SD-05LERGB-4AAB

LEDs

Parameter

Symbol

Rating

Unit

Power Dissipation

Pd

R

50

mW

G

60

B

60

Forward Current

IF

R

20

mA

G

B

Peak Forward Current
(Duty 1/10 @1KHz)

IFP

R

50

mA

G

B

Electrostatic Discharge(HBM)

ESD

R

2000

V

G

1000

B

1000

Reverse Voltage

VR

10

V

Operating Temperature

Topr

-40 ~ +85

Storage Temperature

Tstg

-40 ~ +110

Junction Temperature

TJ

115

Soldering Temperature

Tsol

260


Please contact us for more detail.
