Products > LED Component > UV LED

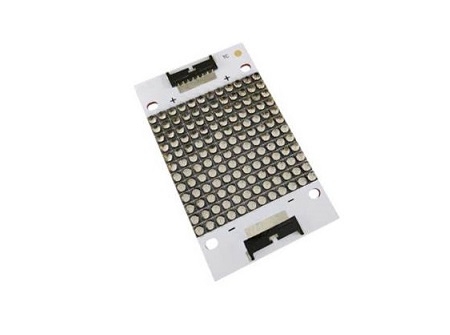

390W UV 360-370 nm LED
 45*75 mm

Item No.: AT4575LM-39030FMV3637

LEDs

Color

Part Number

Emitter

Radiometric Power (mW)

@8400mA

Refer @6000mA

Min.

Typ.

Typ.

UV 3637

AT4575LM-39030FMV3637

142

189

136.5

Color

Forward Voltage VF (V)

@ 8400mA

Refer @6000mA

Min.

Typ.

Max.

Typ.

UV 3637

40.8

46.8

52.8

43.2

Color

Peak Wavelength λP

Total Included Angle
(degrees)
θ0.90V

Viewing Angle
(degrees)

 2 θ1/2

Min.

Typ.

Max.

UV 3637

365 nm

367.5 nm

370 nm

160

30



Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 100°C

Please contact us for more detail.
