Products > LED Component > High Power LED

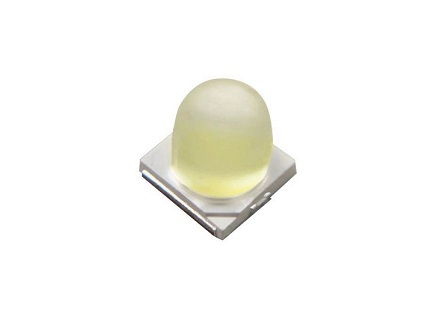

3W 3535 40 degree LED
 CCT 6000K

Item No.: AP3535F40-3NEWT-R7

LEDs

Color

Part Number

Luminous Flux ΦV (lm)

CRI

@350mA

Refer @700mA

Emitter

Min.

Typ.

Min.

Typi.

Min.

White

AP3535F40-3NEWT-R7

120

135

210

235

70

Color

Forward Voltage VF (V)

Thermal Resistance Junction to Slug (°C/ W)

@ 350mA

Refer @700mA

Min.

Typ.

Max.

Typ.

White

2.70

2.95

3.30

3.11

7

Color

Color Temperature CCT

Total

Included Angle (degrees) θ0.90V

Viewing Angle (degrees)
2 θ1/2

Min.

Typ.

Max.

White

5000 K

6000 K

7000 K

140

40



Enviroment
Operation Temperature: -40°C ~ 90°C
Storage Temperature: -40°C ~ 120°C

Please contact us for more detail.
