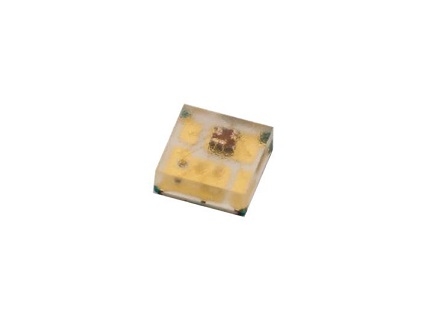

Item No.: AD2020WI-05LERGB-4A
LEDs
|
Parameter
|
Symbol
|
Rating
|
Unit
|
|
IC Power Supply Voltage
|
VDD
|
+3.8 ~ +5.5
|
V
|
|
IC Input Voltage
|
VI
|
-0.4~VDD+0.4
|
V
|
|
DC Forward Current
|
IF
|
5
|
mA
|
|
Soldering Temperature*1
|
TSD
|
260
|
℃
|
|
Parameter
|
Symbol
|
Min.
|
Typ.
|
Max.
|
Unit
|
Condition
|
|
Luminous Intensity
|
IV
|
R
|
-
|
65
|
-
|
mcd
|
IF=5mA
|
|
G
|
-
|
210
|
-
|
|
B
|
-
|
35
|
-
|
|
W
|
120
|
290
|
-
|
|
Dominant Wavelength
|
λd
|
R
|
615
|
-
|
630
|
nm
|
|
G
|
520
|
-
|
535
|
|
B
|
465
|
-
|
475
|
|
Color Coordinate
|
x
|
-
|
0.285
|
-
|
-
|
|
y
|
-
|
0.285
|
-
|
-
|
|
View Angle
|
2 θ1/2
|
-
|
120
|
-
|
deg
|
Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 105°C
