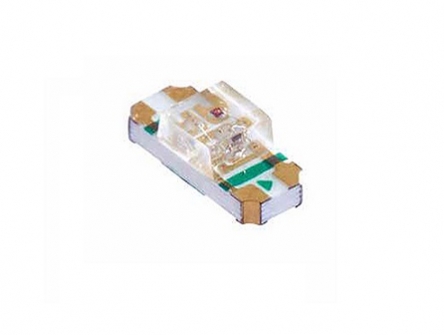

Item No.: TV-1206TB-20URUBPG4AA-A
LEDs
|
Parameter
|
Symbol
|
Min.
|
Typ.
|
Max.
|
Unit
|
Test Condition
|
|
Forward Voltage
|
VF
|
R
|
1.7
|
2.0
|
2.4
|
V
|
IF=20mA
|
|
G
|
2.8
|
3.1
|
3.6
|
|
B
|
2.8
|
3.1
|
3.6
|
|
Reverse Current
|
IR
|
-
|
-
|
10
|
μA
|
VR=5V
|
|
Peak Wavelength
|
λp
|
R
|
-
|
632
|
-
|
nm
|
IF=20mA
|
|
G
|
-
|
518
|
-
|
|
B
|
-
|
624
|
-
|
|
Dominant Wavelength
|
λd
|
R
|
-
|
624
|
-
|
nm
|
|
G
|
515
|
-
|
530
|
|
B
|
460
|
-
|
570
|
|
Half Intensity Angle
|
2 θ 1/2
|
R
|
-
|
120
|
-
|
deg
|
|
Luminous Intensity
|
IV
|
R
|
112
|
180
|
285
|
mcd
|
|
G
|
360
|
530
|
715
|
|
B
|
112
|
180
|
-
|
Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 100°C
