Products > LED Component > PLCC LED

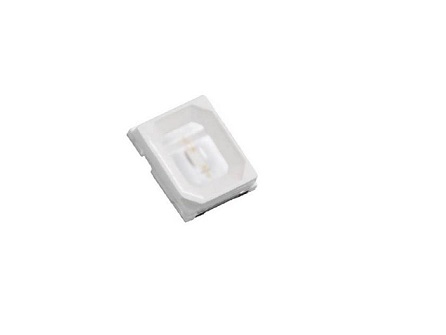

2835 Blue LED
 *PLCC-2 package
*Top view Blue LED

Item No.: AY2835S-05LEB

LEDs

Parameter

Symbol

Rating

Unit

Forward Current

IF

150

mA

Peak Forward Current

(Duty 1/10 @10ms)

IFP

300

mA

Power Dissipation

Pd

540

mW

Operating Temperature
(Detail see page 7 Fig. 5)

Topr

-40 ~ +85

Storage Temperature

Tstg

-40 ~ +100

Thermal Resistance
(Junction / Soldering point)

Rth J-S

50

/W

Junction Temperature

T j

125

Soldering Temperature

Tsol

Reflow Soldering : 260 for 10 sec.

Hand Soldering : 350 for 3 sec.

Parameter

Symbol

Min.

Typ.

Max.

Unit

Condition

Luminous Flux(1)

Φ

9

-

15

Im

IF=150mA

Forward Voltage(2)

VF

2.9

-

3.6

V

IF=150mA

Viewing Angle

2θ1/2

-

120

-

deg

IF=150mA

Reverse Current

IR

-

-

50

μA

VR =5V



 Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 100°C

 Please contact us for more detail.
