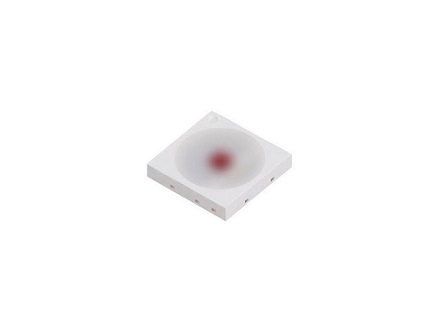

Item No.: AE3030E-1350LEHR
LEDs
|
Parameter
|
Symbol
|
Min.
|
Typ.
|
Max.
|
Unit
|
Condition
|
|
|
Forward Voltage
|
VF
|
1.8
|
2.35
|
2.8
|
V
|
IF=350mA
|
|
|
Luminous Flux
|
Φ
|
55
|
62
|
-
|
lm
|
|
|
Thermal Resistance
|
(Rth j-sp)
|
-
|
10
|
-
|
℃/W
|
|
|
Viewing Angle
|
2θ 1/2
|
-
|
120
|
-
|
deg
|
|
|
Reverse Current
|
IR
|
-
|
-
|
10
|
μA
|
VR=5V
|
|
|
Electrostatic Discharge
|
ESD
|
8000
|
-
|
-
|
V
|
HBM
|
|
|
Parameter
|
Symbol
|
Absolute Maximum Ratings
|
|
Forward Current
|
IF
|
500 mA
|
|
Pulsed Forward Current
|
IFP
|
600 mA
|
|
Power Dissipation
|
PD
|
1400 mW
|
|
Reverse Voltage
|
VR
|
5 V
|
Enviroment
Operation Temperature: -40°C ~ 105°C
Storage Temperature: -40°C ~ 105°C
